ASUS PRIME B860M-K
* mATX Form Factor
CPU: Support Intel® Core™ Ultra Processors (Series 2) ,
LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel®
Turbo Boost Max Technology 3.0
Chipset: Intel® B860 Chipset
Paměť: 2 x sloty DIMM, max. 96 GB, DDR5 - Podporuje až
8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM
(CUDIMM)
*Dual channel memory architecture
*DIMM Fit
*Supports Intel® Extreme Memory Profile (XMP) memory module
*ASUS Enhanced Memory Profile III(AEMP III)
Grafické porty:
*1 x DisplayPort
*1 x HDMI™ port
Rozšiřující sloty:
Intel® Core™ Ultra Processors(Series 2)
*1 x PCIe 4.0 x16 slot
Intel® B860 Chipset
*2 x PCIe 4.0 x1 slots
Úložný prostor:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors(Series 2)
*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4
mode)
Intel® B860 Chipset
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4
mode)
*4 x SATA 6Gb/s ports
Ethernet:
*1 x Realtek 2.5Gb Ethernet
*ASUS LANGuard
USB:
Zadní USB (Total 7 ports)
*1 x USB 10Gbps port (1 x Type-A)
*2 x USB 5Gbps ports (2 x Type-A)
*3 x USB 2.0 ports (3 x Type-A)
Přední USB (Total 7 ports)
*1 x USB 5Gbps connector (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
*Supports: Jack-detection, Multi-streaming, Front Panel
Jack-retasking
*Supports up to 24-Bit/192 kHz playback
Audio Features
*Audio Shielding
*Premium audio capacitors
*Dedicated audio PCB layers

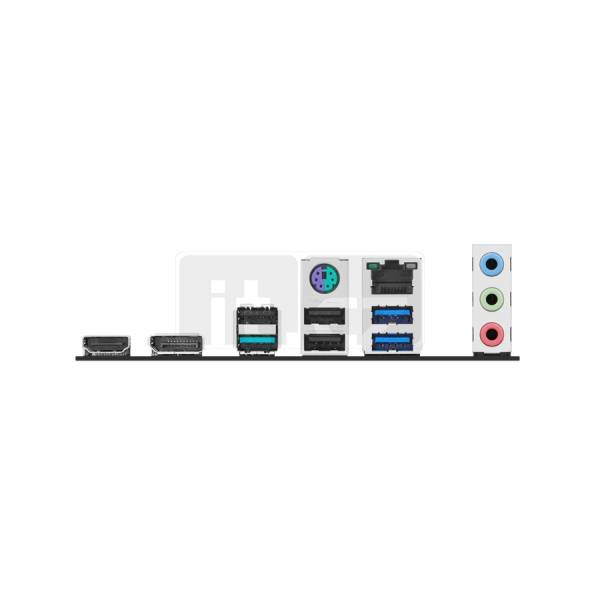

Vstupy/výstupy zadního panelu:
*1 x USB 10Gbps port (1 x Type-A)
*2 x USB 5Gbps ports (2 x Type-A)
*3 x USB 2.0 ports (3 x Type-A)
*1 x DisplayPort
*1 x HDMITM port
*1 x Realtek 2.5Gb Ethernet port
*3 x Audio jacks
*1 x PS/2 Keyboard/Mouse combo port
Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header
*2 x 4-pin Chassis Fan headers
Napájení:
*1 x 24-pin Main Power connector
*1 x 8-pin +12V CPU Power connector
Úložiště:
*2 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
USB:
*1 x USB 5Gbps connector (supports USB Type-C® )
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports
Různé:
*2 x Addressable Gen2 headers
*1 x Aura RGB header
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (F_AUDIO)
*1 x S/PDIF Out header
*1 x SPI TPM header (14-1 pin)
*1 x 10-1 pin Front System Panel header
Příslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Různé:
*1 x I/O Shield
*2 x M.2 anchors
Dokumenty:
*1 x Quick start guide
Parametry a specifikace:
Konektory
2x USB 3.0
HDMI
Obecné
Formát ATX:
Micro ATX
Počet LAN portů:
1x LAN port
RAID:
ano
XMP:
Ano
Počet slotů pro RAM:
2x
